KDE17 NEM362 European Coupler Short 7.11mm (2pr)

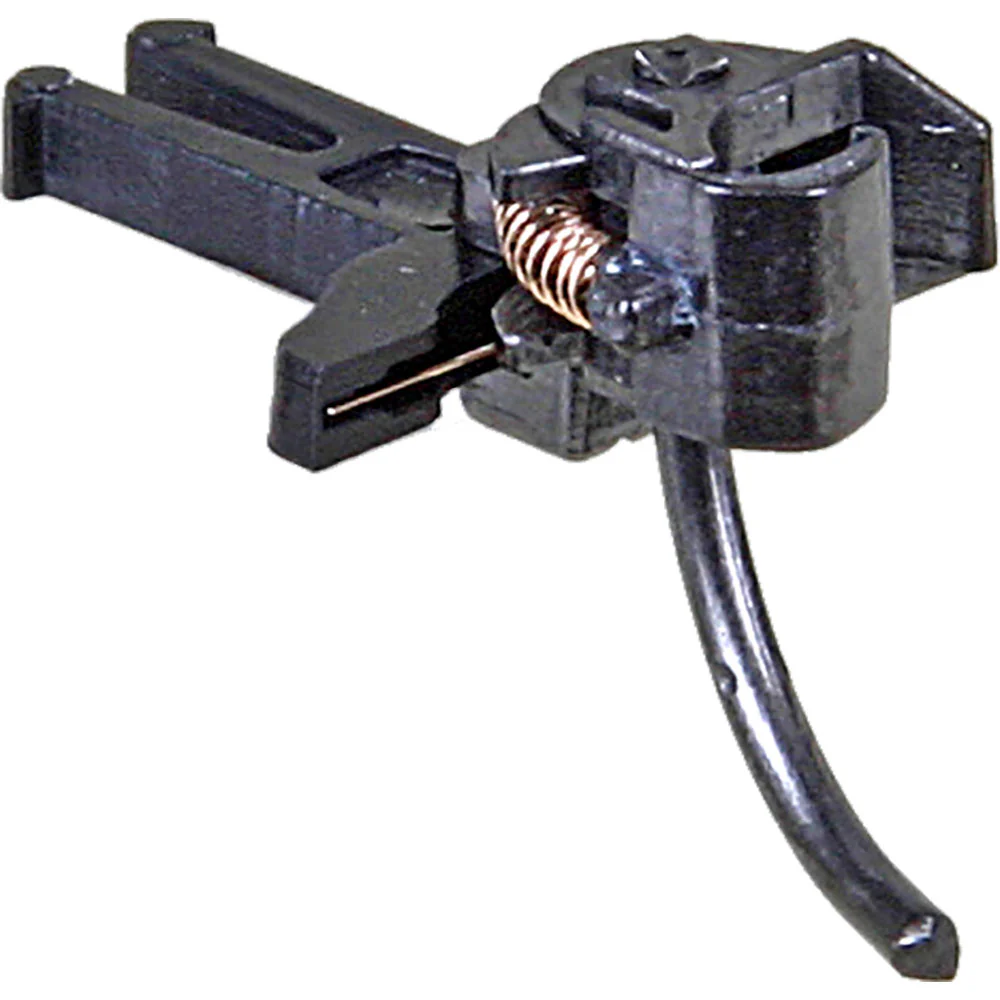

This industry leading coupler features an NEM 362 European Style Coupler. The #17 Magne-MaticĀ® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Ā
Package Includes:
- (2) Pair #17 Couplers (Aassembled) - Short Underset
- (2) #622 Knuckle Springs
#17 Coupler Features:
- Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank
- Length - Short (7.11mm , .280 inch , 9/32") (pulling face to the dovetail sholder)
- Coupler Offset - Underset
- Knuckle Spring - #622
- Centering System - NEM European Style Coupler
- Head - Standard Head

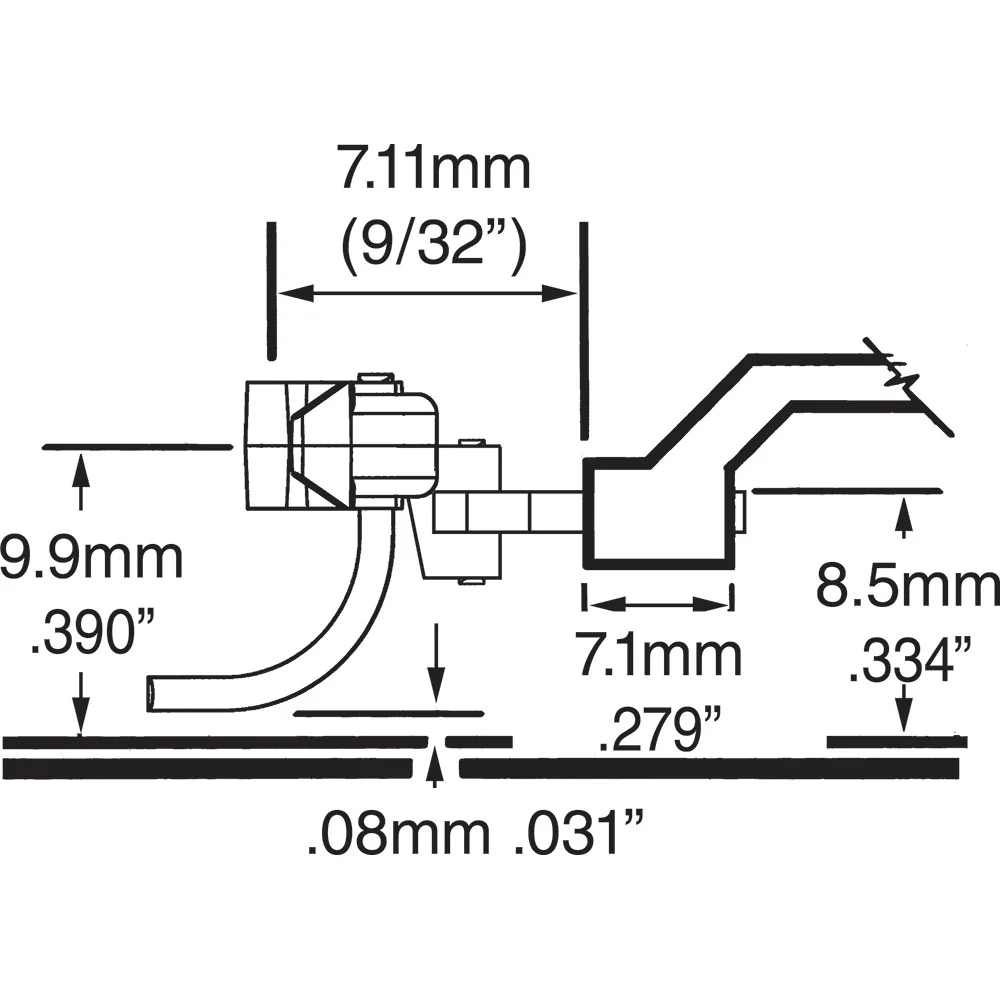

Mounting Specifications:
- Mounting Height - 7.11mm , .334"
- Centerline - 9.9mm , .390"
- Trip Pin Height - .08mm , .031"
Recommended Tools:
- #206 Insulated Muti-Purpose Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
Ā
